VD4断路器插座1VCF599750S0163

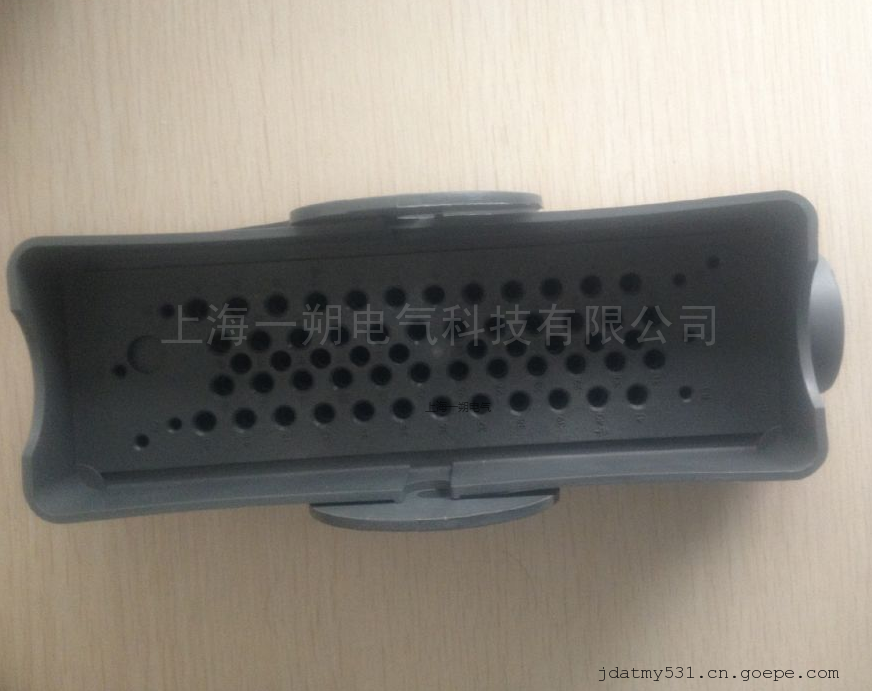

VD4断路器插座1VCF599750S0163,  Plugs, sockets and tube  提示：原装的带有包装 和 说明书，原配航空插头其机械强度，绝缘特性和阻燃特性更能保障。 航空插头，镀银插针，可带导线。 Socket with 58 female pins, C.E. type without wiring, for Unigear, UniSec WBS-WBC,Univer C, Unisafe, PowerCube, CBE.NOTE: Special crimping, extractor tools areneeded and are not included.
航空插防误插针矩阵附件 可防止错误额定电流的断路器被摇进到开关柜中。
Plug with 58 male pins, C.E. type without wiring, for HD4, VD4, Vmax, VM1, VSC,Vcontact front version. NOTE: Special crimping, extractor tools are needed and arenot included.航空插头插座 单独航空插座座体 不含插座等。断路器插针原配插针 镀银材质 ，航空插座用插针（Φ1.0 mm Φ1.5 mm Φ2.0 mm Φ2.5 mm ）× 50只，

 1VCF309850S4913  CALOR EMAG  TYPE Y1 Ui250V Ith2  10A。
1VCF349899S0031 Socket with 58 female pins (AMPH socket) without wiring, for HD4, VD4 side version
1VCF379652S0101 Plug and socket with 58 female and male pins (AMPH plug and socket) without wiring, for HD4, VD4 side version
1VCF349799S0560 Plug with 58 male pins, C.E. type without wiring, for HD4, VD4, Vmax, VM1, VSC, Vcontact front version.NOTE: Special crimping, 1VCF309850S2913  extractor tools are needed and are not included.
1VCF349750S0483 Position switch Q60-FB1-FCM1 (NO) for circuit breaker's motor protection
1VCF349850S2913  for HD4, HD4/R (from SN: AC00002779)
1VCF599750S0163 Socket with 58 female pins, C.E. type without wiring, for Unigear, UniSec WBS-WBC, Univer C, Unisafe, PowerCube, CBE.NOTE:     Special crimping, extractor tools areneeded and are not included.
1VCF349799S0171 Motor limit switch S33M/1-BS1-BGS1 for HD4-VD4/R ESH
1VCF349750S0121 Manual device for closing spring charging for HD4-VD4/R ESH
1VCF339799S0426 Insulating tube, length 3mt., for plug connector of MV circuit breaker
1VCF349750S0407 Mechanical interlock with the door for HD4/W/P/US/Sec, VContact/W/P, VD4/P/W/PW/US/Sec, VM1/P/Z/W/AP/PW,     1VCF339799S0300  Vmax/L/W/Sec/P/PG/PN/PNG, VSC/P/PG/PN/PNG/S-PG/S-PNG
1VCF309550S0302 Position switch S75I-S75S-BT1-BT2-BGT1-BGT2 standard version, in the truck for VSC-SRC, VSC/P/PG/S-PG
1VCF309599S0051 Capacitor for VSC
1VCF309599S0031 Position switches of contactor set of 10 for VSC
1VCF309599S0082 Tulip-type contacts, D.35-16 fingers, set of 6 pieces for fuses BS type,for VSC/P 7-12kV
1VCF309599S0081 Tulip-type contacts, D.35-16 fingers, set of 6 pieces for fuses DIN type, for VSC/P 7-12kV
1VCF309503S0070 Manual truck of circuit breaker for VSC 7-12/P 400A without position switches and Electromechanical truck lock coil
1VCF309750S0201 Position switches BGB1-BGB2 of circuit-breaker operating mechanism (set of 14)for HD4 12-17kV 630-1250A 25kA series 5 from 2016    1VCF599750S0163except Marine and Gostversions.
1VCF309750S0221 Position switches BGB1-BGB2 of circuit-breaker operating mechanism (set of 20)for HD4 12-17kV 630-1250A 25-31,5kA series 5 from 1VCF309850S4913  2016 except Marine and Gost versions.
1VCF349750S0334 Position switches of circuit-breaker operating mechanism (set of 10)for HD4 frontal version
1VCF349750S0335 Position switches of circuit-breaker operating mechanism (set of 15)with fig.9 for HD4 frontal version except Calor Emag version
1VCF349850S0159 Position switches of circuit-breaker operating mechanism (set of 15) without fig.9for HD4 frontal versions from s.n.AC00002779, 1VCF339799S0426 VD4/R/S/Uniair/Unimix with ESH.
1VCF349750S0395 Position switch S75C-BT3-BGT3 for HD4/W/P/SEC/GT_P/US, HM1/UT_W/UT_P froms.n. AC00002779, VD4/P-G/GT-P 12kV, VSC7-12/P/PG, Vmax/W/SEC, VD4/P/C/W/ PW/US/SEC/Z
1VCF349850S0161 Position switches of circuit-breaker operating mechanism (set of 5)for HD4/R-SEC only.
1VCF349850S0162 Position switches of circuit-breaker operating mechanism (set of 10)
1VCF349750S0201 Lever for manual closing spring charging for HD4 fixed version
1VCF349750S0211 Lever for manual closing spring charging and lever for racking in/out the circuitbreaker for HD4/NFSG
1VCF349750S0212 Lever for manual closing spring charging and lever for racking in/out the circuitbreaker for HD4/C/W/P/Z/GT_P/US
1VCF349750S0213 Lever for manual closing spring charging for HD4 side version
1VCF349750S0214 Lever for manual closing spring charging and lever for racking in/out the circuitbreaker for HD4/Z 40.5kV
1VCF349799S0501 Mechanical operation counter for HD4-VD4R ESH
1VCF349750S0371 Transient contact Q0-BB4-BGB4 for HD4 up to s.n. AC00002778
1VCF349750S0372 Transient contact Q0-BB4-BGB4 for HD4 from s.n. AC00002779
1VCF349750S1460 Position switch S75I-S75S-BT1-BT2-BGT1-BGT2 for circuit breaker with manual truck for HD4/W/E-W/P 12-17kV,
1VCF329750S0913

         VD4断路器插座1VCF599750S0163,  Plugs, sockets and tube  提示：原装产品 带有外包装 和 说明书。
1VCF339799S0407 Support coils with diode bridge
1VCF339799S0402 Transient contact BB4-S7-BGB4
1VCF339799S0491 Lever for manual closing spring charging
1VCF339799S0131 Lever for racking in/out the circuit breaker
1VCF339799S0403 Position switches S1-BGS1 or S4-BGB2 goldened
1VCF339799S0400Green close pushbutton “Push ON” and Red open pushbutton “Push OFF”
1VCF339799S0401Red close pushbutton “Push ON” and Green open pushbutton “Push OFF”
1VCF339757S2902 Electromechanical locking release for truck   with rectifier, aux. voltage24Vdc for VD4G Classic
1VCF339757S2903 Electromechanical locking release for truck  with rectifier, aux. voltage30Vdc for VD4G Classic
1VCF339757S2904 Electromechanical locking release for truck  with rectifier, aux. voltag48Vdc for VD4G Classic
1VCF339757S2905 Electromechanical locking release for truck  with rectifier, aux. voltage60Vdc for VD4G Classic
1VCF339757S2909 Electromechanical locking release for truck with rectifier, aux. voltage100Vac, 110Vdc/ac for VD4G Classic
1VCF339757S2912 Electromechanical locking release for truck  with rectifier, aux. voltage125Vdc/ac for VD4G Classic
1VCF339757S2918 Electromechanical locking release for truck  with rectifier, aux. voltage220Vdc/ac for VD4G Classic
1VCF339757S2921 Electromechanical locking release for truck  with rectifier, aux. voltage 230Vac, 240Vdc/ac for VD4G Classic
