SafePlus电机2RBA016214A0004



电机2RBA016214A0004, SafePlus switchgear .
Gas-insulated ring main unit SafeRing andcompact switchgear SafePlus is  Gasinsulated Switchgears (GIS) for secondary distribution. This catalog cover spare parts for the following products:
• SafeRing 12-24kV / SafePlus 12-24kV
• SafeRing 36 / SafePlus 36
• SafeRing Air / SafePlus Air
• SafeRing AirPlus / SafePlus AirPlus:
（M-MS-MAS）

储能电机能对断路器操动机构的合闸弹簧自动进行储能操作。当断路器合闸完成后，储能电机立即自动对合闸弹簧进行重新储能。在失电或是检修时，合闸弹簧可被手动储能（通过操动机构内置的储能手柄）。

特性：

Un：24...30-48...60-110...132-220...250 VUn：

110...132-220...250 V~50 Hz/60 Hz

工作电压范围： 85...110% Un

涌入功率（Ps）： 600 W（DC）; 600 VA（AC）

额定功率（Pn）： 200 W（DC）; 200 VA（AC）

涌流持续时间： 约0.2 s

储能时间： 6-7 s

耐压水平： 2000 V 50 Hz（1 min）

NHP304283R5  2RBA016214A0001
Motor and gear, 24V dc for all modules. Not for EL2-mechanism and/or EL3-mechanism.
2RBA016214A0002
Motor and gear, 48V dc for all modules. Not for EL2-mechanism and/or EL3-mechanism.
2RBA016214A0003
Motor and gear, 60V dc for all modules. Not for EL2-mechanism and/or EL3-mechanism.
2RBA016214A0004

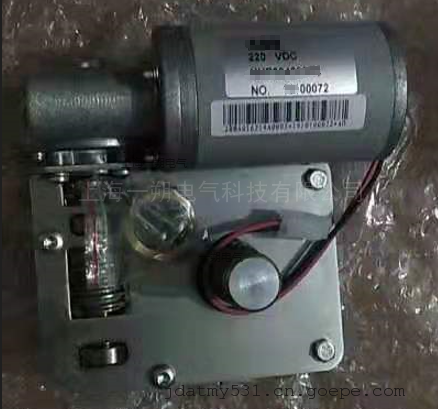

Motor and gear, 110V dc for all modules. Not for EL2-mechanism and/or EL3-mechanism.
2RBA016214A0005
Motor and gear, 230V dc for all modules. Not for EL2-mechanism and/or EL3-mechanism.
1VDC001012R0001
1VDC001012R0002
1VDC001012R0003
1VDC001012R0004.
1VDC001013R0001
1VDC001013R0002
1VDC001013R0003
1VDC001013R0004
CLOSING COIL MC 24V DC L2 • •
2RAA037894A0003 CLOSING COIL MC 48V AC/DC
2RAA037894A0005 CLOSING COIL MC 110-127V AC/DC
2RAA037894A0006 CLOSING COIL MC 220-250V AC/DC
2RAA037892A0006 OPENING COIL MO 24V DC IEEE-3C
• 2RAA037892A0002 OPENING COIL MO 48V AC/DC IEC
• 2RAA037892A0004 OPENING COIL MO 110-132V AC/DC IEC
• 2RAA037892A0005 OPENING COIL MO 220-250V AC/DC IEC
1VDC001012R0001 V COIL MO/MC, 24V DC
• 1VDC001012R0002 V COIL MO/MC, 48V DC
• 1VDC001012R0003 V COIL MO/MC, 110V AC/DC
• 1VDC001012R0004 V COIL MO/MC, 220-250V AC/DC
• 1VDC001013R0001 V COIL MO/MC/MU, 24V DC
• 1VDC001013R0002 V COIL MO/MC/MU, 48V DC
• 1VDC001013R0003 V COIL MO/MC/MU, 110V AC/DC
• 1VDC001013R0004 V COIL MO/MC/MU, 220-250V AC/DC
1VDC001016R0001 V COIL MO2 AND RL1 EL-MECHANISM, 24V DC
• 1VDC001016R0002 V COIL MO2 AND RL1 EL-MECHANISM, 48V DC
• 1VDC001016R0003 V COIL MO2 AND RL1, 110-130V AC/DC
• 1VDC001016R0004 V COIL MO2 AND RL1, 220-250V AC/DC
2RAA037895A0001 UNDERVOLTAGE COIL MU 24V DC
2RAA037895A0003 UNDERVOLTAGE COIL MU 48V AC/DC
2RAA037895A0005 UNDERVOLTAGE COIL MU 110-127V AC/DC
2RAA037895A0006 UNDERVOLTAGE COIL MU 220-250V AC/DC
