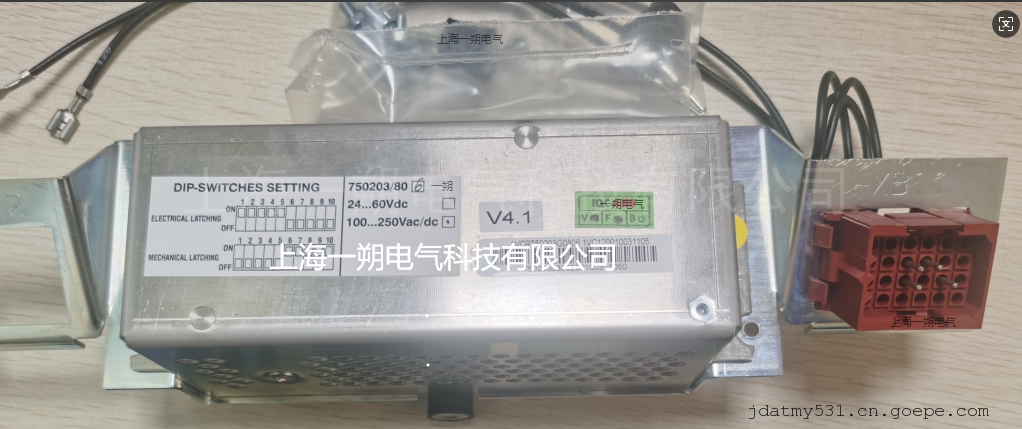

VSC控制模块1VCF309599S0142

VSC控制模块1VCF309599S0142，原装Control module/feeder 。电源模块MAC R2 110-250Vdc/ac (HV) DCO, basic IEC 。
配套VSC/P 7.2kV-400A 220VDC SCO ,DCO. 110V。 UXAB309499012配套 VC(V7)电源模块 110－250V DC/AC
1VCF309499S0012（ 1VCF309499R0012 ）接触器电源模块1VCF309599S1011 ,1VCR750203G0806

VSC控制模块为宽电压供电，采用插拔式安装。
电压范围
110...125 VDC/AC 50-60Hz  /  220...240 VDC/AC 50-60Hz
涌入电流
10.5 A 200 ms /7 A 200 ms
保持功率 ~50 W
接触器辅助触点电气特性
辅助触头等级： 1
约定发热电流:：10 A
耐压水平：2000 V/1 min 50 Hz
额定短时耐受电流100 A/30 ms
开断能力（110 V≤ Ua≤ 250 V）: 440 W
1YHB02COV020008 *电源模块
1YHB02COV020009 *电源模块
1YHB02COV020010 *电源模块带计数器 1
1YHB02COV020011 *电源模块带计数器
1VCR000993G0001 VSC电源板 220-250V
1VCR000993G0002 VSC电源模块 110-130V
1VCF309599S0011 Control module/feeder MAC ED1.0 SCO aux. voltage 220-250 V for VSC up tos.n. BD00027548, VSC-SRC, VSC/Marine version
1VCF309599S0012 Control module/feeder MAC ED1.0 SCO aux. voltage 110-130V for VSC up tos.n. BD00027548, VSC-SRC, VSC/Marine version
1VCF309599S0013 Control module/feeder MAC ED1.0 SCO aux. voltage 24-60Vdc for VSC up tos.n. BD00027548, VSC-SRC, VSC/Marine version
1VCF309599S0014 Control module/feeder MAC ED1.0 DCO aux. voltage 220-250V for VSC up tos.n. BD00027548, VSC-SRC, VSC/Marine version
1VCF309599S0015 Control module feeder MAC ED1.0 DCO aux. voltage 110-130V for VSC up to s.n.BD00027548, VSC-SRC, VSC/Marine version
1VCF309599S0016 Control module/feeder MAC ED1.0 DCO aux. voltage 24-60Vdc for VSC up tos.n. BD00027548, VSC-SRC, VSC/Marine version
1VCF309599S0017 Control module/feeder MAC ED1.0 DCO+UV (undervoltage function) aux. voltage220-250V for VSC  VSC-SRC, VSC/Marine version
1VCF309599S0018 Control module/feeder MAC ED1.0 DCO+UV (undervoltage function) aux. voltage110-130V for VSC  VSC-SRC, VSC/Marine version
1VCF309599S0020 Control module/feeder MAC ED1.0 DCO+UV aux. voltage 24-30Vdc for VSC up tos.n. BD00027548, VSC-SRC, VSC/Marine version
1VCF309599S0021 Control module/feeder MAC ED1.0 DCO+UV aux. voltage 48-60Vdc for VSC up tos.n. BD00027548, VSC-SRC, VSC/Marine version
1VCF309599S0022 Control module/feeder MAC ED1.0 SCO aux. voltage 88-124V for VSC up tos.n. BD00027548, VSC-SRC, VSC/Marine version
1VCF309599S0023 Control module/feeder MAC ED1.0 DCO aux. voltage 88-124V for VSC up tos.n. BD00027548, VSC-SRC, VSC/Marine version



1VCF309599S0131 Control module/feeder MAC R2 24-60Vdc (LV) SCO, basic IEC for VSC
1VCF309599S0132 Control module/feeder MAC R2 24-60Vdc (LV) DCO, basic IEC for VSC from
1VCF309599S0133 Control module/feeder MAC R2 24-60Vdc (LV) DCO + Undervoltage, basic IEC for
1VCF309599S0134 Control module/feeder MAC R2 24-60Vdc (LV) SCO, full option IEC for VSC from
1VCF309599S0135 Control module/feeder MAC R2 24-60Vdc (LV) DCO, full option IEC for VSC from
1VCF309599S0136 Control module/feeder MAC R2 24-60Vdc (LV) DCO + Undervoltage,full option IEC
1VCF309599S0141 Control module/feeder MAC R2 110-250Vdc/ac (HV) SCO, basic IEC for VSC from
1VCF309599S0142 Control module/feeder MAC R2 110-250Vdc/ac (HV) DCO, basic IEC for VSC from
1VCF309599S0143 Control module/feeder MAC R2 110-250Vdc/ac (HV) DCO + Undervoltage, basic IEC
1VCF309599S0144 Control module/feeder MAC R2 110-250Vdc/ac (HV) SCO, full option IEC for VSC
1VCF309599S0145 Control module/feeder MAC R2 110-250Vdc/ac (HV) DCO, full option IEC for VSC
1VCF309599S0146 Control module/feeder MAC R2 110-250Vdc/ac (HV) DCO + Undervoltage, full option
1VCF309599S1131 Control module/feeder MAC R2 24-60Vdc (LV) SCO, basic GB-T for VSC from
1VCF309599S1132 Control module/feeder MAC R2 24-60Vdc (LV) DCO, basic GB-T for VSC from
1VCF309599S1133 Control module/feeder MAC R2 24-60Vdc (LV) DCO + Undervoltage, basic GB-T for
1VCF309599S1134 Control module/feeder MAC R2 24-60Vdc (LV) SCO, full option GB-T for VSC from
1VCF309599S1135 Control module/feeder MAC R2 24-60Vdc (LV) DCO, full option GB-T for VSC from
1VCF309599S1136 Control module/feeder MAC R2 24-60Vdc (LV) DCO + Undervoltage,full option GB-T
1VCF309599S1141 Control module/feeder MAC R2 110-250Vdc/ac (HV) SCO, basic GB-T for VSC from
1VCF309599S1142 Control module/feeder MAC R2 110-250Vdc/ac (HV) DCO, basic GB-T for VSC from
1VCF309599S1143 Control module/feeder MAC R2 110-250Vdc/ac (HV) DCO + Undervoltage,basic GB-T
1VCF309599S1144 Control module/feeder MAC R2 110-250Vdc/ac (HV) SCO, full option GB-T for VSC
1VCF309599S1145 Control module/feeder MAC R2 110-250Vdc/ac (HV) DCO, full option GB-T for VSC
1VCF309599S1146 Control module/feeder MAC R2 110-250Vdc/ac (HV) DCO + Undervoltage,full option
GB-T for VSC from s.n.BD00027549 except Marine version and VSC-SRC

VSC控制模块1VCF309599S0142可选用的型号，均包括以下述两种操作模式。

● SCO (单命令操作):当辅助电源向接触器供电时合闸；当接触器接到分闸命令时辅助电源被切断或辅助电源电压不足时分闸。

● DCO (双命令操作)：接触器接收以脉冲方式发出的合闸命令时合闸；同样,接触器接收以脉冲方式发出的分闸命令时分闸。

应用范围

VSC 真空接触器作为电气控制开关设备，可广泛应用于发电厂、工业、服务、海运等行业中。

真空灭弧室优异的开断性能，使得VSC 接触器能在特别恶劣的条件下运行。

接触器适合控制和保护电动机、变压器、电容器组、开关系统等。配合适当的熔断器，能在短路容量高达1000MVA 的网络中使用。
1VCF309599S0051 Capacitor
1VCF309599S0031 Position switches of contactor set of 10
1VCF599750S0163 Socket with 58 female pins, C.E. type without wiring, for Unigear, UniSec WBS-WBC,
Univer C, Unisafe, PowerCube, CBE.NOTE: Special crimping, extractor tools are needed and are not included.
1VCF349799S0560 Plug with 58 male pins, C.E. type without wiring, for HD4, VD4, Vmax, VM1, VSC,
Vcontact front version.NOTE: Special crimping, extractor tools are needed and are not included.
